DELL · Servers

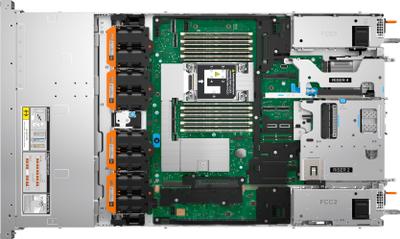

DELL PowerEdge R470 server 960 GB Rack (1U) Intel Xeon 6 6517P 3.2 GHz 32 GB DDR5-SDRAM 1100 W
- Code
- EMEA_PROMO_PER470_SPL2
- Processor manufacturer: Intel
- Processor family: Intel Xeon 6
- Internal memory: 32 GB
- Internal memory type: DDR5-SDRAM
- Total storage capacity: 960 GB
Pricing on request for federal, state, and local agencies.
No overview published for this product.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon 6
- Processor model
- 6517P
- Processor frequency
- 3.2 GHz
- Processor boost frequency
- 4.2 GHz
- Processor cores
- 16
- Processor cache
- 72 MB
- Number of processors installed
- 1
- Thermal Design Power (TDP)
- 190 W
- System bus rate
- 24 GT/s
- Processor threads
- 32
- Memory types supported by processor
- DDR5-SDRAM
- Memory clock speeds supported by processor
- 6400 MHz
Memory
- Internal memory
- 32 GB
- Internal memory type
- DDR5-SDRAM
- Memory slots
- 16x DIMM
Storage
- Total storage capacity
- 960 GB
- Number of SSDs installed
- 2
- SSD capacity
- 480 GB
- SSD interface
- SATA III
- SSD size
- 2.5"
- Supported SSD sizes
- 2.5"
- Number of SSDs supported
- 8
- RAID support
- Yes
- Supported RAID controllers
- PERC H965i Controller
- Hot-Plug support
- Yes
- Optical drive type
- No
- Drive writes per day (DWPD)
- 3
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- VGA (D-Sub) ports quantity
- 1
Expansion slots
- PCI Express x16 (Gen 5.x) slots
- 2
Design
- Chassis type
- Rack (1U)
- Product colour
- Grey
- Rack rails
- Yes
Software
- Operating system installed
- No
- Compatible operating systems
- Canonical Ubuntu Server LTS RedHat Enterprise Linux SUSE Linux Enterprise Server VMware ESXi Windows Server Windows Server Datacenter
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 1100 W
- Number of redundant power supplies installed
- 2
- Power supply input voltage
- 100 - 240 V
Certificates
- 80 PLUS certification
- 80 PLUS Titanium
Carbon footprint
- Total carbon footprint (kg of CO2e)
- 2549
- Total carbon emissions, standard deviation (kg of CO2e)
- 1827
- Carbon emissions, manufacturing (kg of CO2e)
- 553.13
- Carbon emissions, logistics (kg of CO2e)
- 170.78
- Carbon emissions, energy usage (kg of CO2e)
- 1799.59
- Carbon emissions, end-of-life (kg of CO2e)
- 22.94
- PAIA version
- PAIA 1.4.2, 2025
Weight & dimensions
- Width
- 482 mm
- Height
- 42.8 mm
Packaging content
- Packaging content
- Riser Config 6
Other features
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512e
- Target workload
- Read Intensive (RI)
