DELL · Servers

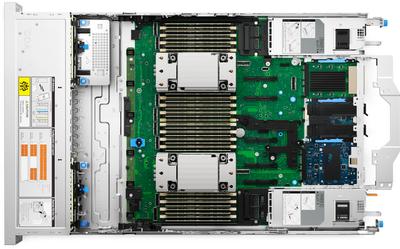

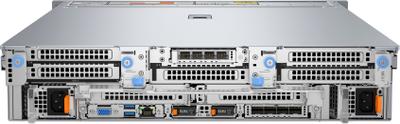

DELL PowerEdge R770 server 1.92 TB Rack (2U) Intel Xeon 6 6520P 2.4 GHz 256 GB DDR5-SDRAM 1100 W
- Code
- PROMO_R770_1
- Processor manufacturer: Intel
- Processor family: Intel Xeon 6
- Internal memory: 256 GB
- Internal memory type: DDR5-SDRAM
- Total storage capacity: 1.92 TB
Pricing on request for federal, state, and local agencies.
Maximum Performance with Optimised Power
The Dell PowerEdge R770 is a 2U, two-socket rack server that enables high-performance computing for optimal power efficiency in your data center.
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Xeon 6
- Processor model
- 6520P
- Processor frequency
- 2.4 GHz
- Processor boost frequency
- 4 GHz
- Processor cores
- 24
- Processor cache
- 144 MB
- Number of processors installed
- 2
- Thermal Design Power (TDP)
- 210 W
- System bus rate
- 24 GT/s
- Processor threads
- 48
- Memory types supported by processor
- DDR5-SDRAM
- Memory clock speeds supported by processor
- 6400 MHz
Memory
- Internal memory
- 256 GB
- Internal memory type
- DDR5-SDRAM
- Buffered memory type
- Registered (buffered)
- Memory ranking
- 2
- Memory slots
- 32x DIMM
- Memory layout (slots x size)
- 8 x 32 GB
- Memory data transfer rate
- 6400 MT/s
- Maximum internal memory
- 8 TB
Storage
- Total storage capacity
- 1.92 TB
- Number of SSDs installed
- 2
- SSD capacity
- 960 GB
- SSD interface
- SATA III
- SSD size
- 2.5"
- Supported SSD sizes
- 2.5"
- Number of SSDs supported
- 6
- Supported RAID controllers
- H965i
- Hot-Plug support
- Yes
- Optical drive type
- No
- Drive writes per day (DWPD)
- 3
Network
- LAN controller
- Broadcom 57504
- Ethernet LAN
- Yes
- Ethernet interface type
- 10 Gigabit Ethernet, 25 Gigabit Ethernet
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 1
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 3
- VGA (D-Sub) ports quantity
- 1
- Serial ports quantity
- 1
Design
- Chassis type
- Rack (2U)
- Product colour
- Grey
- Bezel
- Yes
Performance
- Remote administration
- iDRAC9, Enterprise 16G
Software
- Operating system installed
- No
- Compatible operating systems
- VMware ESXi Windows Server Windows Server Datacenter
- Bundled software
- Dell Connectivity Client - Enabled 17G
Power
- Redundant power supply (RPS) support
- Yes
- Power supply
- 1100 W
- Number of redundant power supplies installed
- 2
- Power supply input voltage
- 100 - 240 V
- Power cable length
- 2 m
- Power cable connector 1
- C13 coupler
- Power cable connector 2
- C14 coupler
- Power cable current
- 10 A
Certificates
- 80 PLUS certification
- 80 PLUS Titanium
Weight & dimensions
- Width
- 482 mm
- Height
- 86.8 mm
Packaging content
- Packaging content
- ReadyRails Sliding Rails Without Cable Management Arm
Other features
- Data transfer rate
- 6 Gbit/s
- Bytes per sector
- 512e
- Target workload
- Read Intensive (RI)
- Open Compute Project (OCP)
- 1 OCP - 1 Rear Blank
