MSI · All-in-One PCs/Workstations

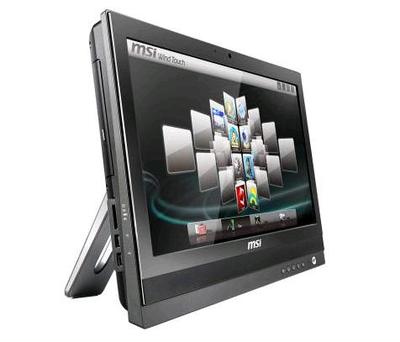

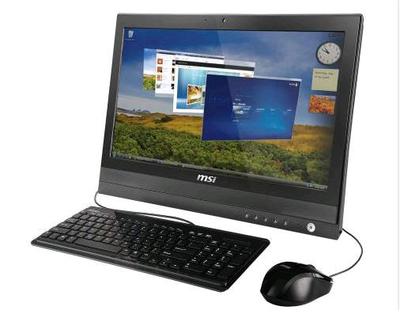

MSI Wind Top Professional AP2000-P6223W7P 50.8 cm (20") 1600 x 900 pixels Touchscreen 2 GB DDR3-SDRAM 320 GB Intel® HD Graphics Windows 7 Professional Black, Silver
- Code
- 00AA2511-SKU1
- Display diagonal: 50.8 cm (20")
- Display resolution: 1600 x 900 pixels
- Processor cores: 2
- Processor frequency: 2.13 GHz
- Internal memory: 2 GB
Pricing on request for federal, state, and local agencies.
MSI All-in-One PC Wind Top AP2000
MSI will introduce a new business All-in-One PC model in the end of 2010: Wind Top AP2000. Designed specifically for the business and office environment, the AIO Wind Top AP2000 is equipped with high performance and powerful features. Equipped with Intel dual-core processor and latest Windows 7 operating system, Wind Top AP2000 will be the best partner in your office.
Designed for professional All-in-One PC
Designed specifically for the business environment, Wind Top AP2000 features a 20” single-touch LCD panel (optional) with a 16:9 aspect ratio that meets HD DVD video requirements and is capable of a super fast 5 ms response time, allowing you to experience vividly clear and lively images.
Intelligent and comprehensive I/O interfaces save you time and let you work more efficiently
Designed expressly for the commercial and office environment, Wind Top AP2000 boasts the most comprehensive set of I/O expansion interfaces, which will satisfy any business needs. Two COM ports are provided for businesses with POS system requirements; these can be used to connect to barcode readers, credit card readers and credit card slip printers.
Professional platform for effective integration
Employing latest Microsoft Windows 7 64-bit operating system and the Office 2010 software, as well as pre-installed anti-virus software, the Wind Top AP2000 offers an excellent and high-performance platform with top security features, putting users at ease. Windows 7 is easy to use, fast, attractive, and offers a variety of ways to search and manage files.
Display
- Display diagonal
- 50.8 cm (20")
- Display resolution
- 1600 x 900 pixels
- Touchscreen
- Yes
- HD type
- HD+
- Touch technology
- Single-touch
- Native aspect ratio
- 16:9
- Display brightness
- 250 cd/m²
- Contrast ratio (typical)
- 1000:1
- Viewing angle, horizontal
- 160°
- Viewing angle, vertical
- 160°
Processor
- Processor cores
- 2
- Processor frequency
- 2.13 GHz
- Processor cache
- 3 MB
- Processor cache type
- L2
Memory
- Internal memory
- 2 GB
- Internal memory type
- DDR3-SDRAM
- Maximum internal memory
- 8 GB
- Memory clock speed
- 1066 MHz
- Memory layout (slots x size)
- 1 x 2 GB
Storage
- Total storage capacity
- 320 GB
- Number of HDDs installed
- 1
- HDD speed
- 7200 RPM
- HDD size
- 3.5"
- HDD interface
- SATA II
- Optical drive type
- DVD Super Multi
- Card reader integrated
- Yes
- Compatible memory cards
- Memory Stick (MS), miniSD, MMC, SD, xD
Graphics
- Discrete graphics card model
- Intel® HD Graphics
Audio
- Built-in microphone
- Yes
Camera
- Built-in camera
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 5
- DVI port
- Yes
- Headphone outputs
- 1
- Microphone in
- Yes
Design
- Product colour
- Black, Silver
Software
- Operating system architecture
- 64-bit
- Operating system installed
- Windows 7 Professional
Weight & dimensions
- Width (with stand)
- 493 mm
- Depth (with stand)
- 89 mm
- Height (with stand)
- 355 mm
- Weight (with stand)
- 7.31 kg
- Package weight
- 13.8 kg
Operational conditions
- Operating temperature (T-T)
- -20 - 60 °C
- Storage temperature (T-T)
- 10 - 35 °C
Certificates
- Certification
- CE/FCC/C-TICK/VCCI/BSMI
Other features
- Graphics card family
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Chassis type
- All-in-One
- COM ports quantity
- 2
- Display included
- Yes
- Megapixel (approx.)
- 1.3 MP
- Networking features
- Gigabit Ethernet
- Number of processors installed
- 1
- Power supply
- 90 W
- Speakers
- 2
- Wake-on-LAN ready
- Yes
