MSI · All-in-One PCs/Workstations

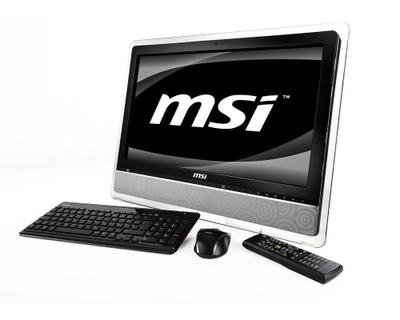

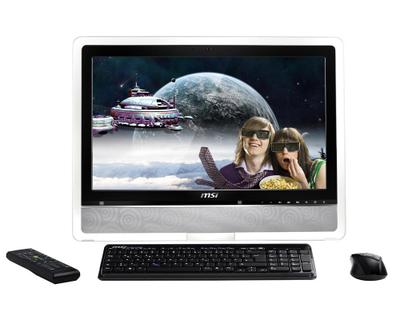

MSI Wind Top AE2420 3D Intel® Core™ i5 i5-650 59.9 cm (23.6") Touchscreen 4 GB DDR3-SDRAM 1 TB AMD Mobility Radeon HD 5730 Windows 7 Home Premium Black, Silver
- Code
- AE2420 3D-023ES
- GTIN
- 4719072182700
- Display diagonal: 59.9 cm (23.6")
- Touchscreen: Yes
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Internal memory: 4 GB
Pricing on request for federal, state, and local agencies.
MSI's 3D Station™ technology integrates the most advanced 3D imaging technologies. Featuring MSI's exclusively developed 3D Station™ technology combined with a 120Hz high resolution panel that transmits high density, 3D digital content to Shutter Glasses. Through precise image processing technology, 3D visual effects then simulate how the human eye views actual images. The Wind Top AE2420 3D features a 120Hz high scanning frequency LED back-light panel, twice the speed of average displays, to provide users with a comfortable viewing experience when looking at 3D images, rather than the uncomfortable sensation felt when watching on 60Hz 3D panels.
Flawless Integration of Ultra-High Performance CPU & GPU
The Wind Top AE2420 3D comes with the newest, fastest Intel® Core™ i5/i7 powerful core processor for enhanced performance. And with multi-tasking functionality and automatic adjustment of processing frequency, it completely meets the demands of running 3D images and 3D games while being a functionally superior computer well-suited to everyday use.
In GPU performance, it features the ATI® Mobility Radeon HD5730 discrete graphics chip that supports DireX 11 and provides ultimate 3D graphics performance. Watching a 3D movie or playing a 3D game can both be accomplished with ease.
First to introduce USB 3.0
The Wind Top AE2420 3D is the first All-in-One PC in the world to feature USB 3.0 technology. USB 3.0 supports transfer rates up to 5 Gbps, or ten times that of USB 2.0. This is also twice as fast as e-SATA under the same given conditions, making it the fastest transfer interface available on the market today.
Extreme Audio & Video for Enhanced Entertainment
The Wind Top AE2420 3D is a heavyweight 3D audio/video entertainment. In audio and video specifications, the AE2420 3D features MSI Premium Sound Technology, full range 5W left and right channel hi-fi speakers, and a 10W subwoofer that creates authentic 2.1 channel sound. And through Hollywood grade THX TruStudio Pro™ surround sound technology, sound performance is enhanced to 7.1 surround sound for pure, clear tone quality, extreme sound layering, and powerful vibrations.
What’s more, this processor also has full operating capabilities. With the new generation DDR3 memory, outstanding performance and 802.11 b/g/n wireless networking, you can wirelessly surf the web, and enjoy the efficiency and convenience of WLAN.
Display
- Display diagonal
- 59.9 cm (23.6")
- Touchscreen
- Yes
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- Intel® Core™ i5
- Processor model
- i5-650
- Processor cores
- 2
- Processor threads
- 4
- Processor boost frequency
- 3.46 GHz
- Processor frequency
- 3.2 GHz
- Processor cache
- 4 MB
- Processor cache type
- Smart Cache
- System bus rate
- 2.5 GT/s
- Processor socket
- LGA 1156 (Socket H)
- Thermal Design Power (TDP)
- 73 W
- PCI Express slots version
- 2.0
- Processor lithography
- 32 nm
- Processor operating modes
- 64-bit
- Stepping
- C2
- Bus type
- DMI
- Processor codename
- Clarkdale
- Processor series
- Intel Core i5-600 Desktop Series
- FSB Parity
- No
- Maximum number of PCI Express lanes
- 16
- PCI Express configurations
- 1x16, 2x8
- Tcase
- 72.6 °C
- Number of Processing Die Transistors
- 382 M
- CPU multiplier (bus/core ratio)
- 24
- Processing Die size
- 81 mm²
- Maximum internal memory supported by processor
- 16 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3 1066/1333
- Memory bandwidth supported by processor (max)
- 21 GB/s
- Memory channels supported by processor
- Dual
- ECC supported by processor
- No
Memory
- Internal memory
- 4 GB
- Internal memory type
- DDR3-SDRAM
Storage
- Total storage capacity
- 1 TB
- HDD interface
- SATA II
- Card reader integrated
- Yes
Graphics
- Discrete graphics card model
- AMD Mobility Radeon HD 5730
- Discrete graphics memory type
- GDDR3
- On-board graphics card
- Yes
- On-board graphics card family
- Intel® HD Graphics
- On-board graphics card model
- Intel® HD Graphics
- On-board graphics card base frequency
- 733 MHz
- Number of displays supported (on-board graphics)
- 2
Audio
- Built-in microphone
- Yes
Camera
- Built-in camera
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Bluetooth
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 2
- HDMI ports quantity
- 1
- VGA (D-Sub) ports quantity
- 1
- DVI port
- No
- Headphone outputs
- 1
- Microphone in
- Yes
- eSATA ports quantity
- 1
Design
- Product colour
- Black, Silver
Performance
- Motherboard chipset
- Intel® H55 Express
Software
- Operating system installed
- Windows 7 Home Premium
Processor special features
- Intel® Turbo Boost Technology
- 1.0
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- Yes
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- Yes
- Intel Clear Video Technology
- No
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- No
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel Trusted Execution Technology
- Yes
- Intel Enhanced Halt State
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- No
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- Yes
- Thermal Monitoring Technologies
- No
- Processor package size
- 37.5 x 37.5 mm
- Supported instruction sets
- SSE4.2
- Physical Address Extension (PAE)
- 36 bit
- CPU configuration (max)
- 1
- Embedded options available
- No
- Graphics & IMC lithography
- 45 nm
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Dual Display Capable Technology
- Yes
- Intel FDI Technology
- Yes
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- No
- Processor ARK ID
- 43546
Weight & dimensions
- Width (with stand)
- 617.2 mm
- Depth (with stand)
- 72 mm
- Height (with stand)
- 461.7 mm
- Weight (with stand)
- 14 kg
- Package weight
- 17 kg
Packaging content
- Remote control included
- Yes
Other features
- Graphics card family
- AMD
- Audio output channels
- 7.1 channels
- Chassis type
- All-in-One
- Display
- LED
- Display included
- Yes
- Expansion slots
- Mini PCI-E x2
- Floppy drive installed
- No
- Maximum graphics card memory
- 1024 MB
- Networking features
- Gigabit Ethernet
- Power availability
- 180 W
- SmartCard slot
- No
- Speakers
- 2
- Wireless technology
- 802.11 b/g/n
