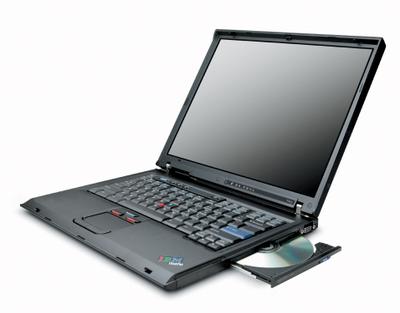

Lenovo ThinkPad T42p PM-745 1GB 60GB 15.0 inchTFT Centrino 11b/g Blue tooth D Intel Pentium Mobile 38.1 cm (15") UXGA AMD Mobility FireGL T2
Hover to zoom · click to enlarge

Lenovo · Laptops

Lenovo ThinkPad T42p PM-745 1GB 60GB 15.0 inchTFT Centrino 11b/g Blue tooth D Intel Pentium Mobile 38.1 cm (15") UXGA AMD Mobility FireGL T2

Code
UC2F4NU
  • Display diagonal: 38.1 cm (15")
  • Display resolution: 1600 x 1200 pixels
  • Processor manufacturer: Intel
  • Processor family: Intel Pentium Mobile
  • Internal memory: 1 GB

Pricing on request for federal, state, and local agencies.

IBM doesn’t differentiate its ThinkPad range between consumer and business models, offering a uniform degree of build quality and scalability. In the same way, it does not specify the type of machine it offers, so on first appearances there’s little to inform the user that the IBM ThinkPad T42p is pitched as a mobile orkstation. Such laptops are suitable for those who use graphic packages on a daily basis. Therefore, the quality of the screen and graphics sub-system is as important as that of the main specification. IBM has moved away from the 14.1-inch screen it offered on its T41p workstation and the T42p comes with a 15-inch TFT panel.

While the main advantage of this, namely that of a larger visible area to work within, is obvious, IBM has also taken the inclusion of a larger screen to up the native resolution of the display to an impressive 1600 x 1200 pixels. Images appear crisp and clear and we were more than impressed with its overall quality. The panel is supported by the ATi Mobility Fire GLT2 with 128MB of dedicated VRAM. Under test, this graphics adapter returned a 3DMark 2001 score of 9204. While this falls short of the 10000 plus expected of the latest generation of ATi Mobility Radeon cards, it still represents excellent performance, making it capable of running all but the most strenuous of 3D tasks with comparative ease.

Display

Display diagonal
38.1 cm (15")
Display resolution
1600 x 1200 pixels
HD type
UXGA
Native aspect ratio
4:3
Contrast ratio (typical)
750:1

Processor

Processor manufacturer
Intel
Processor family
Intel Pentium Mobile
Processor model
745
Processor cores
1
Processor threads
1
Processor frequency
1.8 GHz
Processor cache
2 MB
Processor cache type
L2
Processor front side bus
400 MHz
Processor socket
Socket 479
Processor lithography
90 nm
Processor operating modes
32-bit
Processor series
Intel Pentium M 700 Series
Processor codename
Dothan
Bus type
FSB
FSB Parity
No
Thermal Design Power (TDP)
21 W
Tjunction
100 °C
Number of Processing Die Transistors
144 M
Processing Die size
87 mm²
CPU multiplier (bus/core ratio)
18
ECC supported by processor
No

Memory

Internal memory
1 GB

Storage

Total storage capacity
60 GB
HDD speed
7200 RPM

Graphics

Discrete graphics card model
AMD Mobility FireGL T2
Discrete graphics card
Yes
Maximum graphics card memory
0.128 GB
Maximum resolution
2048 x 1536 pixels
Graphics card interface
AGP 4X

Audio

Number of built-in speakers
2

Network

Networking features
Ethernet/Fast Ethernet/Gigabit Ethernet/IEEE 802.11b/IEEE 802.11g/Bluetooth

Ports & interfaces

I/O ports
•AC adapter •Expansion Bus port (for Dock II/Mini Dock or Port Replicator II) •External microphone •External Display •Headphone/Line out •Infrared •Parallel •RJ-11 •RJ-45 •S-Video out •2 USB 2.0, USB, parallel, RJ-11, RJ-45, FIR

Keyboard

Keyboard type
Full size

Software

Compatible operating systems
Microsoft Windows XP Professional

Processor special features

Intel® Wireless Display (Intel® WiDi)
No
Intel® My WiFi Technology (Intel® MWT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® Hyper Threading Technology (Intel® HT Technology)
No
Intel® Turbo Boost Technology
No
Enhanced Intel SpeedStep Technology
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
No
Intel Clear Video Technology
No
Intel® InTru™ 3D Technology
No
Intel® Insider™
No
Intel® Quick Sync Video Technology
No
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
No
Intel Trusted Execution Technology
No
Intel Enhanced Halt State
No
Intel VT-x with Extended Page Tables (EPT)
No
Intel Demand Based Switching
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
Intel 64
No
Execute Disable Bit
Yes
Idle States
No
Thermal Monitoring Technologies
No
Processor package size
35 x 35 mm
Embedded options available
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel Virtualization Technology (VT-x)
No
Intel Dual Display Capable Technology
No
Intel FDI Technology
No
Intel Rapid Storage Technology
No
Intel Fast Memory Access
No
Processor ARK ID
27591
Conflict-Free processor
No

Battery

Battery life (max)
3.4 h

Weight & dimensions

Width
329 mm
Depth
268 mm
Dimensions (WxDxH)
329 x 268 x 31 mm
Weight
2.6 kg

Hard drive

Storage drive type
ATA-100 (Enhanced IDE)

Other features

Security features
•Hard disk drive password •Integrated fingerprint reader •IBM Embedded Security Subsystem 2.0 •IBM Security Slot •Power-on password •Supervisor password
Battery type
6 Cell Lithium-Ion
Internal modem
Yes
Modem speed
56 Kbit/s
