Lenovo · All-in-One PCs/Workstations
Lenovo ThinkCentre M90z Intel® Core™ i5 i5-650 58.4 cm (23") 1920 x 1080 pixels 2 GB DDR3-SDRAM 250 GB Windows 7 Professional Black
- Code
- VEHE3UK
- Display diagonal: 58.4 cm (23")
- Display resolution: 1920 x 1080 pixels
- Processor manufacturer: Intel
- Processor family: Intel® Core™ i5
- Internal memory: 2 GB
Pricing on request for federal, state, and local agencies.

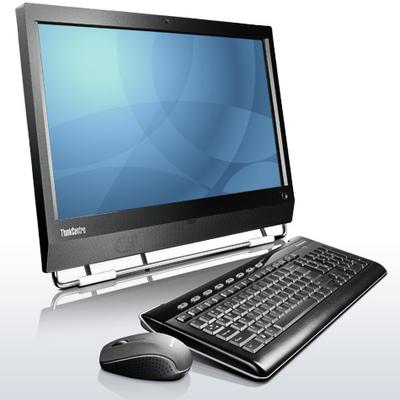

Tame workplace clutter.
Crowded work areas beg for the ThinkCentre M90z. It combines the monitor with the central unit, resulting in a smaller PC footprint and less cable clutter. For an even tidier workspace, add an optional wireless keyboard and mouse.
The traditional frame stand adjusts to between a 15- and 45-degree viewing angle. To further customize your work space, choose the height-adjustable stand or one of our mounting options, like the extendable arm
An all-in-one with oomph.
Give your workforce a real productivity boost. ThinkCentre M90z features all-new 2010 Intel® Core™ i series processors with Turbo Boost Technology, which scales power dynamically based on usage needs for optimal processing and energy efficiency. You can even speed your boot-up time to as fast as 35 seconds and shutdown time to as fast as nine seconds with our exclusive Lenovo Enhanced Experience for Windows® 7 certification. Standard on the M90z!

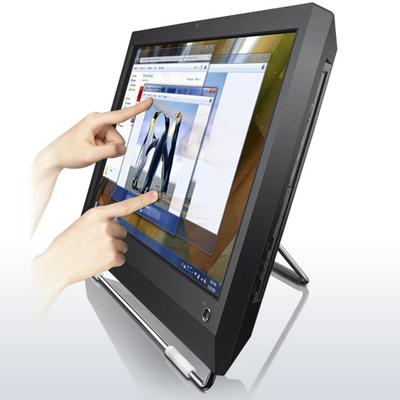

Control at your fingertips.
For more intuitive PC interaction, opt for our multitouch panel. Pan, zoom, rotate, right-click and more on the full high-definition screen. You can even control hardware functions like volume, mute, camera preview, sleep mode, microphone and system lock from your multitouch screen using our SimpleTap software. And because the touch screen is a normal glass overlay, you can safely clean and disinfect it—perfect for healthcare personnel!
Double vision.
See more at once with the dual-display mode. Simply connect another monitor using the onboard DisplayPort to increase your screen space. ThinkCentre M90z can also function as a standalone monitor via a VGA input, letting you work with your ThinkPad® laptop on two screens!
Stay in touch for less.
Choose an innovative, affordable alternative to expensive telephone services and business travel with our leading VoIP features for convenient, cost-effective video conferencing.
- 2-megapixel HD Web camera with physical on/off switch
- Digital array microphones for better voice clarity with physical mute button
- 2-watt speakers
- Noise suppression and echo cancelation
- Usage indicator light to indicate imaging in process
Security you can count on.
Protect your business-critical data. Our exclusive ThinkVantage Client Security Solution works in conjunction with an embedded chip called the Trusted Platform Module (TPM) to manage encryption keys and processes for enhanced security.
Our easy-to-use Hardware Password Manager is the only solution available that lets you centrally manage keys and passwords for all brands of self-encrypting hard drives. In the event of lost passwords or an employee leaving the company, you can easily recover data.
ThinkCentre M90z is also available with an optional chassis intrusion switch. When enabled, this feature alerts the user of a PC breach at the next logon.
Display
- Display diagonal
- 58.4 cm (23")
- Display resolution
- 1920 x 1080 pixels
- HD type
- Full HD
- Native aspect ratio
- 16:9
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel® Core™ i5
- Processor generation
- Intel® Core™ i5
- Processor model
- i5-650
- Processor cores
- 2
- Processor threads
- 4
- Processor boost frequency
- 3.46 GHz
- Processor frequency
- 3.2 GHz
- Processor cache
- 4 MB
- Processor cache type
- Smart Cache
- L2 cache
- 4 MB
- L3 cache
- 4 MB
- System bus rate
- 2.5 GT/s
- Processor socket
- LGA 1156 (Socket H)
- Thermal Design Power (TDP)
- 73 W
- PCI Express slots version
- 2.0
- Processor lithography
- 32 nm
- Processor operating modes
- 64-bit
- Stepping
- C2
- Bus type
- DMI
- Processor codename
- Clarkdale
- Processor series
- Intel Core i5-600 Desktop Series
- FSB Parity
- No
- Maximum number of PCI Express lanes
- 16
- PCI Express configurations
- 1x16, 2x8
- Tcase
- 72.6 °C
- Number of Processing Die Transistors
- 382 M
- CPU multiplier (bus/core ratio)
- 24
- Processing Die size
- 81 mm²
- Maximum internal memory supported by processor
- 16 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3 1066/1333
- Memory bandwidth supported by processor (max)
- 21 GB/s
- Memory channels supported by processor
- Dual
- ECC supported by processor
- No
Memory
- Internal memory
- 2 GB
- Internal memory type
- DDR3-SDRAM
- Memory clock speed
- 1333 MHz
Storage
- Total storage capacity
- 250 GB
- HDD capacity
- 250 GB
- HDD speed
- 7200 RPM
- HDD interface
- SATA
- Optical drive type
- DVD-RW
- Card reader integrated
- Yes
Graphics
- On-board graphics card
- Yes
- On-board graphics card family
- Intel® HD Graphics
- On-board graphics card model
- Intel® HD Graphics
- On-board graphics card base frequency
- 733 MHz
- Number of displays supported (on-board graphics)
- 2
Network
- Wi-Fi
- No
- Ethernet LAN
- Yes
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 8
- VGA (D-Sub) ports quantity
- 1
- DisplayPorts quantity
- 1
- DVI port
- No
- Headphone outputs
- 1
- Microphone in
- Yes
- PS/2 ports quantity
- 2
- Serial ports quantity
- 1
Design
- Product colour
- Black
Software
- Operating system installed
- Windows 7 Professional
Processor special features
- Intel® Turbo Boost Technology
- 1.0
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- Yes
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- Yes
- Intel Clear Video Technology
- No
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- No
- Intel® AES New Instructions (Intel® AES-NI)
- Yes
- Intel Trusted Execution Technology
- Yes
- Intel Enhanced Halt State
- Yes
- Intel VT-x with Extended Page Tables (EPT)
- Yes
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- No
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- Yes
- Thermal Monitoring Technologies
- No
- Processor package size
- 37.5 x 37.5 mm
- Supported instruction sets
- SSE4.2
- Physical Address Extension (PAE)
- 36 bit
- CPU configuration (max)
- 1
- Embedded options available
- No
- Graphics & IMC lithography
- 45 nm
- Intel Virtualization Technology for Directed I/O (VT-d)
- Yes
- Intel Virtualization Technology (VT-x)
- Yes
- Intel Dual Display Capable Technology
- Yes
- Intel FDI Technology
- Yes
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- No
- Processor ARK ID
- 43546
Weight & dimensions
- Width (with stand)
- 560 mm
- Depth (with stand)
- 116 mm
- Height (with stand)
- 443 mm
Packaging content
- Remote control included
- No
Other features
- Graphics card family
- Intel
- TV tuner integrated
- No
- Chassis type
- All-in-One
- Display
- All In One with integrated camera 0.3M
- Display included
- Yes
- Floppy drive installed
- No
- Form factor
- All In One All In One (2x6)
- Memory type
- DDR3
- Networking features
- Gigabit Ethernet
- Number of slots
- 1 Mini-PCIe
- Pointing device
- USB Optical Wheel Mouse
- Power supply
- 150 W
- Security features
- Boot sequence control, Boot without keyboard or mouse, Configuration password, Diskette Boot inhibit, Diskette I/O control, Hardfile I/O control, Parallel I/O control, Power on password, Security slot (for attachment of optional cable lock), Serial I/O
- Storage drive type
- 250GB SATA/ 7200
- Manageability features
- ImageUltra enabled, Remote Deployment Manager, Software Delivery Assistant, System Migration Assistant, ThinkVantage Rescue and Recovery
- Modem type
- N
- Intel segment tagging
- Enterprise, Professional
