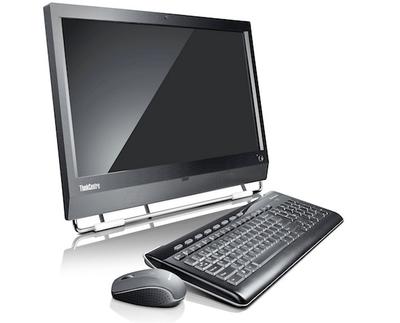

Lenovo ThinkCentre M90z Intel® Core™ i3 i3-550 58.4 cm (23") 1920 x 1080 pixels 2 GB DDR3-SDRAM 500 GB Intel® GMA HD Windows 7 Professional Black
Hover to zoom · click to enlarge

Lenovo · All-in-One PCs/Workstations

Lenovo ThinkCentre M90z Intel® Core™ i3 i3-550 58.4 cm (23") 1920 x 1080 pixels 2 GB DDR3-SDRAM 500 GB Intel® GMA HD Windows 7 Professional Black

Code
VEEB9UK
  • Display diagonal: 58.4 cm (23")
  • Display resolution: 1920 x 1080 pixels
  • Processor manufacturer: Intel
  • Processor family: Intel® Core™ i3
  • Internal memory: 2 GB

Pricing on request for federal, state, and local agencies.

Premium performance in a space-saving package.
Standardize on our new professional-grade ThinkCentre® M90z all-in-one to save space, energy, time and money. Sleek, slim, sophisticated and packed with all the features your large enterprise demands—including a lot more elbow room.

Tame workplace clutter.
Crowded work areas beg for the ThinkCentre M90z. It combines the monitor with the central unit, resulting in a smaller PC footprint and less cable clutter. For an even tidier workspace, add an optional wireless keyboard and mouse.
The traditional frame stand adjusts to between a 15- and 45-degree viewing angle. To further customize your work space, choose the height-adjustable stand or one of our mounting options, like the extendable arm.

An all-in-one with oomph.
Give your workforce a real productivity boost. ThinkCentre M90z features all-new 2010 Intel® Core™ i series processors with Turbo Boost Technology, which scales power dynamically based on usage needs for optimal processing and energy efficiency. You can even speed your boot-up time to as fast as 35 seconds and shutdown time to as fast as nine seconds with our exclusive Lenovo Enhanced Experience for Windows® 7 certification. Standard on the M90z!

Control at your fingertips.
For more intuitive PC interaction, opt for our multitouch panel. Pan, zoom, rotate, right-click and more on the full high-definition screen. You can even control hardware functions like volume, mute, camera preview, sleep mode, microphone and system lock from your multitouch screen using our SimpleTap software. And because the touch screen is a normal glass overlay, you can safely clean and disinfect it—perfect for healthcare personnel!

Double vision.
See more at once with the dual-display mode. Simply connect another monitor using the onboard DisplayPort to increase your screen space. ThinkCentre M90z can also function as a standalone monitor via a VGA input, letting you work with your ThinkPad® laptop on two screens!

Stay in touch for less.
Choose an innovative, affordable alternative to expensive telephone services and business travel with our leading VoIP features for convenient, cost-effective video conferencing.
- 2-megapixel HD Web camera with physical on/off switch.
- Digital array microphones for better voice clarity with physical mute button.
- 2-watt speakers.
- Noise suppression and echo cancelation.
- Usage indicator light to indicate imaging in process.

Real IT cost savings.
An aging PC fleet can inflate maintenance costs and divert IT resources from more important tasks. Easy-to-manage ThinkCentre M90z helps free up your IT team while reducing overhead.
- Deploy in as little as three minutes.
- Control costs with at least 12-month platform stability.
- Deploy worldwide with global models.
- Recover fast from system crashes and deliver remote fixes to users, saving an estimated US$57 per PC.
- Reduce manual searches for drivers with ThinkVantage® System Update for an estimated savings of up to US$192 per PC.
- Reduce IT desk-side visits and associated costs with Intel vPro™ technology.
- Access internal parts easily with the tool-less design and convenient component layout.

Security you can count on.
Protect your business-critical data. Our exclusive ThinkVantage Client Security Solution works in conjunction with an embedded chip called the Trusted Platform Module (TPM) to manage encryption keys and processes for enhanced security.
Our easy-to-use Hardware Password Manager is the only solution available that lets you centrally manage keys and passwords for all brands of self-encrypting hard drives. In the event of lost passwords or an employee leaving the company, you can easily recover data.
ThinkCentre M90z is also available with an optional chassis intrusion switch. When enabled, this feature alerts the user of a PC breach at the next logon.

Be green. Save green.
Feel good about the PCs you buy and use—and save a chunk of money at the same time! ThinkCentre M90z helps save energy, the environment and your bottom line.
- First TCO Certified Edge all-in-one in the industry.
- Built with 41.8% post consumer content (PCC), the equivalent of 65 plastic bottles.
- Cuts electricity consumption by up to 69% with Power Manager software.
- Saves an estimated US$54.72 per unit per year on power costs.
- Lets you monitor PC power usage and savings with Power Analyzer.
- Auto-sensing brightness control can save an estimated US$8.20 per unit per year.
- Top environmental certifications, including ENERGY STAR, EPEAT Gold and GREENGUARD.
- Climate Savers power supply unit.
- Comes with a reusable Lenovo bag.

Accessorize your ThinkCentre M90z.
- Work in comfort. The Lenovo Extend Arm mounts to your desk and lets you easily adjust your PC for comfortable use. Extend out up to 16.1", raise up to 10.6", tilt 240 degrees and pivot for portrait or landscape viewing (57Y4352).
- Give yourself a raise. Our height-adjustable stand lets you easily lift your PC over 4" and tilt it forward five degrees or back 25 degrees for more comfortable computing (57Y4351).
- Clutter-free zone. Our ultraslim wireless keyboard and mouse contribute to a tidier work area. Easy to set up and use with a plug-and-play nano-sized receiver that stores neatly out of the way (57Y4700).

Windows® 7
Lenovo offers a wide variety of systems preloaded with the newest Windows 7 operating system.

Windows® 7 Lenovo Enhanced Experience PCs
Get the best computing experience available by selecting desktops featuring Windows 7 Lenovo Enhanced Experience certification. Enjoy faster startup and connection times plus more entertainment and security features than ever.

Here when you need us
Lenovo's award-winning support is always a click or call away. For even faster, customized support, step up to optional ThinkPlus services.

Display

Display diagonal
58.4 cm (23")
Display resolution
1920 x 1080 pixels
HD type
Full HD
Native aspect ratio
16:9

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i3
Processor generation
Intel® Core™ i3
Processor model
i3-550
Processor cores
2
Processor threads
4
Processor frequency
3.2 GHz
Processor cache
4 MB
Processor cache type
Smart Cache
L2 cache
4 MB
L3 cache
4 MB
System bus rate
2.5 GT/s
Processor socket
LGA 1156 (Socket H)
Thermal Design Power (TDP)
73 W
PCI Express slots version
2.0
Processor lithography
32 nm
Processor operating modes
64-bit
Stepping
K0
Bus type
DMI
Processor codename
Clarkdale
Processor series
Intel Core i3-500 Desktop Series
FSB Parity
No
Maximum number of PCI Express lanes
16
PCI Express configurations
1x16, 2x8
Processor code
SLBUD
Tcase
72.6 °C
Number of Processing Die Transistors
382 M
CPU multiplier (bus/core ratio)
24
Processing Die size
81 mm²
Maximum internal memory supported by processor
16 GB
Conflict-Free processor
No
Memory types supported by processor
DDR3-SDRAM
Memory clock speeds supported by processor
1066,1333 MHz
Memory bandwidth supported by processor (max)
21 GB/s
Memory channels supported by processor
Dual
ECC supported by processor
No

Memory

Internal memory
2 GB
Internal memory type
DDR3-SDRAM
Maximum internal memory
8 GB
Memory clock speed
1333 MHz
Memory layout (slots x size)
1 x 2 GB

Storage

Total storage capacity
500 GB
Number of HDDs installed
1
HDD capacity
500 GB
HDD speed
7200 RPM
HDD interface
SATA
Optical drive type
DVD-RW
Card reader integrated
No

Graphics

Discrete graphics card model
Intel® GMA HD
On-board graphics card
Yes
On-board graphics card family
Intel® HD Graphics
On-board graphics card model
Intel® HD Graphics
On-board graphics card base frequency
733 MHz
Number of displays supported (on-board graphics)
2

Network

Wi-Fi
Yes
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s

Ports & interfaces

Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
6
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
1
DVI port
No
Headphone outputs
1
Microphone in
Yes

Design

Product colour
Black

Software

Operating system installed
Windows 7 Professional
Trial software
Microsoft Office Professional 2007 Norton Internet Security 2009
Bundled software
Adobe Acrobat Reader Acrobat Flash Player Skype PC-Doctor SUN JRE Corel Burn SE Lenovo Edition InterVideo Win DVD ThinkVantage Rescue & Recovery ThinkVantage Product Recovery ThinkVantage ClientSecurity Solution ThinkVantage Password Manager ThinkVantage Power Manager Lenovo ThinkVantage Toolbox ThinkVantage System Update

Processor special features

Intel® Turbo Boost Technology
No
Intel® Hyper Threading Technology (Intel® HT Technology)
Yes
Intel® My WiFi Technology (Intel® MWT)
No
Intel® Anti-Theft Technology (Intel® AT)
No
Intel® Wireless Display (Intel® WiDi)
No
Enhanced Intel SpeedStep Technology
Yes
Intel® Quick Sync Video Technology
No
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel Clear Video Technology
No
Intel® Insider™
No
Intel® InTru™ 3D Technology
No
Intel Flex Memory Access
No
Intel® AES New Instructions (Intel® AES-NI)
No
Intel Trusted Execution Technology
No
Intel Enhanced Halt State
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Demand Based Switching
No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
No
Intel 64
Yes
Execute Disable Bit
Yes
Idle States
Yes
Thermal Monitoring Technologies
No
Processor package size
37.5 x 37.5 mm
Supported instruction sets
SSE4.2
Physical Address Extension (PAE)
Yes
Physical Address Extension (PAE)
36 bit
CPU configuration (max)
1
Embedded options available
No
Graphics & IMC lithography
45 nm
Intel Virtualization Technology for Directed I/O (VT-d)
No
Intel Virtualization Technology (VT-x)
Yes
Intel Dual Display Capable Technology
Yes
Intel FDI Technology
Yes
Intel Rapid Storage Technology
No
Intel Fast Memory Access
No
Processor ARK ID
48505

Power

Power consumption (typical)
85 W

Weight & dimensions

Width (with stand)
560 mm
Depth (with stand)
109 mm
Height (with stand)
443 mm

Packaging content

Mouse included
Yes
Keyboard included
Yes

Other features

Graphics card family
Intel
Cabling technology
10/100/1000Base-T(X)
Chassis type
All-in-One
Compatible operating systems
Windows 7 Professional (32-bit) Windows 7 Professional (64-bit) Windows 7 Home Premium (32-bit) Windows 7 Home Premium (64-bit) Windows 7 Home Basic (32-bit)
Compliance industry standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Display
All In One with integrated camera 0.3M
Display included
Yes
Floppy drive installed
No
Form factor
All In One All In One (2x6)
Storage drive type
500GB SATA/ 7200
Memory type
DDR3
Modem type
N
Networking features
Gigabit Ethernet
Number of 5.25" bays
1
Number of processors installed
1
Number of slots
1 Mini-PCIe
PCI Express x1 slots
1
Platform
PC
Pointing device
USB Optical Wheel Mouse
Power supply
150 W
Security features
Boot sequence control, Boot without keyboard or mouse, Configuration password, Diskette Boot inhibit, Diskette I/O control, Hardfile I/O control, Parallel I/O control, Power on password, Security slot (for attachment of optional cable lock), Serial I/O
Wake-on-LAN ready
Yes
Manageability features
ImageUltra enabled, Remote Deployment Manager, Software Delivery Assistant, System Migration Assistant, ThinkVantage Rescue and Recovery
Number of 3.5" bays
1
Intel segment tagging
Enterprise, Professional
