ASUS · All-in-One PCs/Workstations

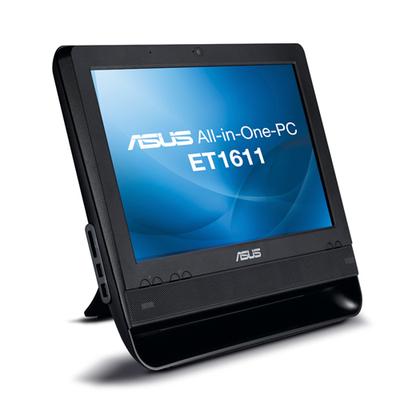

ASUS ET ET1611PUT-B0067 All-in-One PC/workstation Intel Atom® D425 39.6 cm (15.6") 1366 x 768 pixels Touchscreen 1 GB DDR2-SDRAM 250 GB Intel® GMA 3150 Windows 7 Home Premium Black
- Code
- ET1611PUT-B0067
- Display diagonal: 39.6 cm (15.6")
- Display resolution: 1366 x 768 pixels
- Processor manufacturer: Intel
- Processor family: Intel Atom®
- Internal memory: 1 GB
Pricing on request for federal, state, and local agencies.
All-in-one PC ET1611PUT
with matte-finished LED 15.6" Touch Screen, COM port and VGA-out port
- Matte-finished LED touch screen offers better screen visibility;
- Built-in COM port and VGA-out port allows versatile application;
- 15.6" screen and VESA wall mount enables flexible placement.
15.6" Screen and VESA mount
The all-in-one ET1611PUT PC’s small footprint, 15.6" screen and optional ASUS certified wall-mounting* make it the ideal fit in any environment.
Matte-finished Touch Screen
The touchscreen enables easy interaction with customers in libraries, banks, and reception areas. The specially-treated matte surface frame and screen are fingerprint-resistant for better visibility.
Low Energy Consumption and Easily Recyclable
With its mercury-free and super-bright 15.6” LED backlit panel, energy-efficient Atom processor, and a package with 80% recycled material, the ET1611PUT uses less energy and can be easily recycled, saving money and reduce ultimate emissions footprint.
COM port and VGA-out port
Equipped with COM ports and VGA ports, the ET1611PUT can easily connect to other commercial devices – from projectors at school to barcode readers and POS systems at retail.
Display
- Display diagonal
- 39.6 cm (15.6")
- Display resolution
- 1366 x 768 pixels
- Touchscreen
- Yes
- HD type
- Not supported
- Touch technology
- Single-touch
- Native aspect ratio
- 16:9
Processor
- Processor manufacturer
- Intel
- Processor family
- Intel Atom®
- Processor model
- D425
- Processor cores
- 1
- Processor threads
- 2
- Processor frequency
- 1.8 GHz
- Processor cache
- 0.512 MB
- Processor cache type
- L2
- Processor socket
- BGA 559
- Thermal Design Power (TDP)
- 10 W
- Processor lithography
- 45 nm
- Processor operating modes
- 64-bit
- Stepping
- A0
- Bus type
- DMI
- Processor codename
- Pineview
- Processor series
- Intel Atom D400 Series
- FSB Parity
- No
- Processor code
- SLBXD
- Tjunction
- 100 °C
- Number of Processing Die Transistors
- 123 M
- Processing Die size
- 66 mm²
- Maximum internal memory supported by processor
- 4 GB
- Conflict-Free processor
- No
- Memory types supported by processor
- DDR3 800 (SODIMM only); DDR2 667/800
- Memory bandwidth supported by processor (max)
- 6.4 GB/s
- Memory channels supported by processor
- Single
- ECC supported by processor
- No
Memory
- Internal memory
- 1 GB
- Internal memory type
- DDR2-SDRAM
- Maximum internal memory
- 2 GB
- Memory clock speed
- 800 MHz
- Memory layout (slots x size)
- 1 x 1 GB
Storage
- Total storage capacity
- 250 GB
- Number of HDDs installed
- 1
- HDD speed
- 5400 RPM
- HDD size
- 2.5"
- HDD interface
- SATA II
- Optical drive type
- No
- Card reader integrated
- Yes
- Compatible memory cards
- MMC, SD, SDHC
Graphics
- Discrete graphics card model
- Intel® GMA 3150
- On-board graphics card
- Yes
Audio
- Built-in microphone
- Yes
Camera
- Built-in camera
- Yes
Network
- Wi-Fi
- Yes
- Ethernet LAN
- Yes
- Ethernet LAN data rates
- 10,100,1000 Mbit/s
Ports & interfaces
- Ethernet LAN (RJ-45) ports
- 1
- USB 2.0 ports quantity
- 4
- VGA (D-Sub) ports quantity
- 1
- DVI port
- Yes
- Headphone outputs
- 1
- Microphone in
- Yes
Design
- Product colour
- Black
- Cable lock slot
- Yes
- Cable lock slot type
- Kensington
Software
- Operating system installed
- Windows 7 Home Premium
Processor special features
- Intel® Turbo Boost Technology
- No
- Intel® Hyper Threading Technology (Intel® HT Technology)
- Yes
- Intel® My WiFi Technology (Intel® MWT)
- No
- Intel® Anti-Theft Technology (Intel® AT)
- No
- Intel® Wireless Display (Intel® WiDi)
- No
- Enhanced Intel SpeedStep Technology
- No
- Intel® Quick Sync Video Technology
- No
- Intel® Clear Video HD Technology (Intel® CVT HD)
- No
- Intel Clear Video Technology
- No
- Intel® Insider™
- No
- Intel® InTru™ 3D Technology
- No
- Intel Flex Memory Access
- No
- Intel® AES New Instructions (Intel® AES-NI)
- No
- Intel Trusted Execution Technology
- No
- Intel Enhanced Halt State
- No
- Intel VT-x with Extended Page Tables (EPT)
- No
- Intel Demand Based Switching
- No
- Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
- No
- Intel 64
- Yes
- Execute Disable Bit
- Yes
- Idle States
- No
- Thermal Monitoring Technologies
- No
- Processor package size
- 22 x 22 mm
- Supported instruction sets
- SSE2, SSE3, SSSE3
- Physical Address Extension (PAE)
- 32 bit
- Embedded options available
- Yes
- Intel Virtualization Technology for Directed I/O (VT-d)
- No
- Intel Virtualization Technology (VT-x)
- No
- Intel Dual Display Capable Technology
- No
- Intel FDI Technology
- No
- Intel Rapid Storage Technology
- No
- Intel Fast Memory Access
- No
- Processor ARK ID
- 49489
Weight & dimensions
- Width (with stand)
- 407 mm
- Depth (with stand)
- 425 mm
- Height (with stand)
- 336 mm
- Weight (with stand)
- 3.1 kg
Other features
- Graphics card family
- Intel
- Cabling technology
- 10/100/1000Base-T(X)
- Chassis type
- All-in-One
- COM ports quantity
- 1
- Display
- LED
- Display included
- Yes
- Megapixel (approx.)
- 0.3 MP
- Power supply
- 40 W
- Speakers
- 2
- Intel segment tagging
- Enterprise, Small Business
